Terminais Rotulares LA INT
Série:LARGA
Suporte de Fricção: AÇO / AÇO
Manutenção: Requer




BITOLA ACIMA DE 30MM
SOB-CONSULTA E LOTE MÍNIMO
DIMENSÕES
CAPAC. DE CARGA
PESO
DESIGNAÇÃO
DINÂM.
ESTÁT
D1
D2
D3
D4
B1
B2
L1
L2
L3
 KA
R
kgf
Kgf
grs.
05
18
8.5
11
8
6.0
27
4,0
10
9
13
M 5x0,8
332
796
0.016

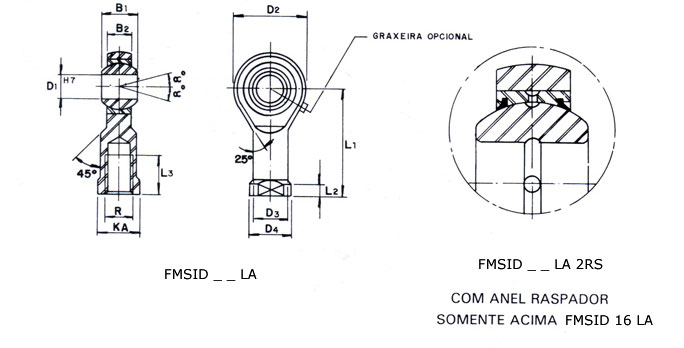

 FMSID 05 LA
06
20
10,0
13
9
6.8
30
5,0
15
11
13
M 6x1,0
430
1.030
0.025
 FMSID 06 LA
08
24
12,5
16
12
9.0
36
5,0
16
14
14
M 8x1,25
725
1.750
0.043
 FMSID 08 LA
10
30
15,0
19
14
10.5
43
6,5
20
17
13
M 10x1,5
1.000
2.400
0.072
 FMSID 10 LA
12
34
17,5
22
16
12.0
50
6,5
22
19
15
M 12x1,75
1.350
3.240
0.100
 FMSID 12 LA
14
36
21,0
26
19
13.5
57
8,0
25
22
16
M 14x2,0
1.700
4.100
0.160
 FMSID 14 LA
16
42
22,0
27
21
15.0
64
8,0
28
22
15
M 16x2,0
2.200
5.300
0.210
 FMSID 16 LA
18
46
25,0
31
23
16.5
71
10,0
32
27
15
M 18x1,5
2.650
6.400
0.300
 FMSID 18 LA
20
50
27,5
35
25
18.0
77
10,0
33
30
14
M 20x1,5
3.150
7.600
0.380
 FMSID 20 LA
22
54
30,0
36
28
20.0
84
7,5
37
32
15
M 22x1,5
3.800
9.200
0.500
 FMSID 22 LA
25
62
33,5
42
31
22.0
94
12,0
42
36
15
M 24x2,0
4.750
11.400
0.650
 FMSID 25 LA
30
73
40,0
50
37
25.0
110
15,0
56
41
17
M 30x2,0
6.400
15.400
1.000
 FMSID 30 LA

BITOLAS EM POLEGADAS
3/16"
18
8,5
11
5/16
6.0
27
4,0
10
9
13
10 - 32
332
796
0.016
 FMSID 3/16" LA
1/4"
20
10,0
13
3/8
6.8
30
5,0
15
11
13
1/4" - 28
430
1.030
0.025
 FMSID 1/4" LA
5/16"
24
12,5
16
7/16
9.0
36
5,0
16
14
14
5/16" - 24
725
1.750
0.043
 FMSID 5/16" LA
3/8"
30
15,0
19
1/2
10.5
43
6,5
20
17
13
3/8" - 24
1.00
2.400
0.072
 FMSID 3/8" LA
7/16"
34
17,5
22
5/8
12.0
50
6,5
22
19
13
7/16" - 20
1.350
3.240
0.100
 FMSID 7/16" LA
1/2"
34
17,5
22
5/8
12.0
50
6,5
22
19
15
1/2" - 20
1.350
3.240
0.100
 FMSID 1/2" LA
5/8"
42
22,0
27
3/4
15.0
64
8,0
28
22
15
5/8" - 18
2.200
5.300
0.210
 FMSID 5/8" LA
3/4"
50
27,5
35
1"
18.0
77
10,0
33
30
14
3/4" - 16
2.650
6.400
0.300
 FMSID 3/4" LA
