Rótulas Axiais - AST
Série: AST
Suporte de Fricção: AÇO/ PTFE
Manutenção: LIVRE

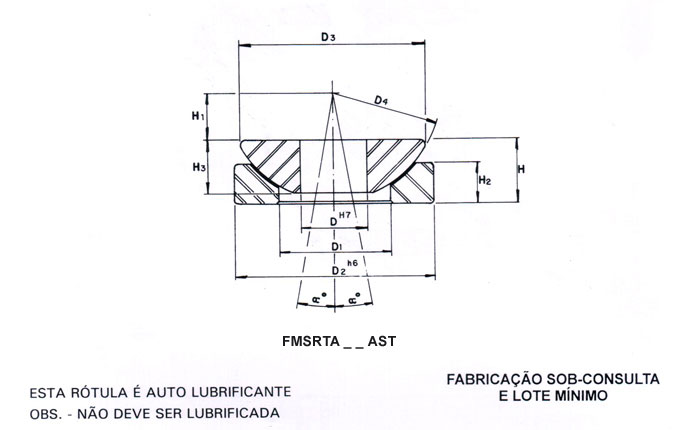

DIMENSÕES
CAPAC. DE CARGA

PESO

KG

DESIGNAÇÃO
DINÂM.
ESTÁT
D1
D
D2
D3
D4
H
H1
H2
H3
kgf
Kgf
27,0
17
47
43,5
52
16,0
11,0
11,2
11,8
10
3.880
6.230
0,14
 FMSRTA 17 AST
31,0
20
55
50,0
60
20,0
12,5
13,8
14,5
9
5.000
8.200
0,25
 FMSRTA 20 AST
34,5
25
62
58,5
68
22,5
14,0
16,7
16,5
7
7.700
12.200
0,42
 FMSRTA 25 AST
42,0
30
75
70,0
82
26,0
17,5
19,0
19,0
7
10.400
16.600
0,61
 FMSRTA 30 AST
50,5
35
90
84,0
98
28,0
22,0
20,7
22,0
8
14.600
23.300
0,98
 FMSRTA 35 AST
59,0
40
105
97,0
114
32,0
24,5
21,5
27,0
9
19.000
30.600
1,50
 FMSRTA 40 AST
67,0
45
120
110,0
128
36,5
27,5
25,5
31,0
9
24.500
38.800
2,25
 FMSRTA 45 AST
70,0
50
130
120,0
139
42,5
30,0
30,5
33,0
7
29.600
47.400
3,15
 FMSRTA 50 AST
84,0
60
150
140,0
160
45,0
35,0
34,0
37,0
8
39.800
64.300
4,65
 FMSRTA 60 AST
94,5
70
160
153,0
176
50,0
35,0
36,0
42,0
8
50.000
79.600
5,40
 FMSRTA 70 AST
107,5
80
180
172,0
197
50,0
42,5
38,0
43,5
8
61.200
97.000
6,95
 FMSRTA 80 AST
127,0
100
210
198,0
222
59,0
45,0
46,0
51,0
8
78.000
124.500
11,00
 FMSRTA 100 AST
145,0
120
230
220,0
250
64,0
52,5
50,0
53,5
6
95.000
150.000
14,00
 FMSRTA 120 AST
