Rótulas
Axiais - ASA
Série: ASA
Suporte de Fricção: AÇO/ AÇO
Manutenção:
REQUER |
|
| |
|
|

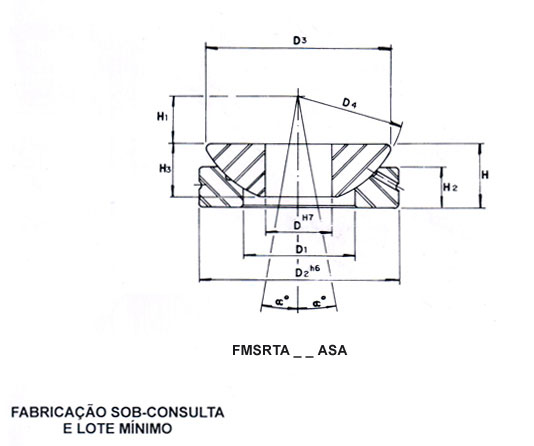

| DIMENSÕES |
CAPAC.
DE CARGA |
|
DESIGNAÇÃO
|
DINÂM. |
ESTÁT. |
|
D1 |
D |
D2 |
D3 |
D4 |
H |
H1 |
H2 |
H3 |
|
kgf |
Kgf |
27,0 |
17 |
47 |
43,5 |
52 |
16,0 |
11,0 |
11,2 |
11,8 |
10 |
3.880 |
23.280 |
0,14 |
FMSRTA
17 ASA |
31,0 |
20 |
55 |
50,0 |
60 |
20,0 |
12,5 |
13,8 |
14,5 |
9 |
5.000 |
30.000 |
0,25 |
FMSRTA
20 ASA |
34,5 |
25 |
62 |
58,5 |
68 |
22,5 |
14,0 |
16,7 |
16,5 |
7 |
7.700 |
46.200 |
0,42 |
FMSRTA
25 ASA |
42,0 |
30 |
75 |
70,0 |
82 |
26,0 |
17,5 |
19,0 |
19,0 |
7 |
10.400 |
62.400 |
0,61 |
FMSRTA
30 ASA |
50,5 |
35 |
90 |
84,0 |
98 |
28,0 |
22,0 |
20,7 |
22,0 |
8 |
14.600 |
87.600 |
0,98 |
FMSRTA
35 ASA |
59,0 |
40 |
105 |
97,0 |
114 |
32,0 |
24,5 |
21,5 |
27,0 |
9 |
19.000 |
114.000 |
1,50 |
FMSRTA
40 ASA |
67,0 |
45 |
120 |
110,0 |
128 |
36,5 |
27,5 |
25,5 |
31,0 |
9 |
24.500 |
147.000 |
2,25 |
FMSRTA
45 ASA |
70,0 |
50 |
130 |
120,0 |
139 |
42,5 |
30,0 |
30,5 |
33,0 |
7 |
29.600 |
177.600 |
3,15 |
FMSRTA
50 ASA |
84,0 |
60 |
150 |
140,0 |
160 |
45,0 |
35,0 |
34,0 |
37,0 |
8 |
39.800 |
238.000 |
4,65 |
FMSRTA
60 ASA |
94,5 |
70 |
160 |
153,0 |
176 |
50,0 |
35,0 |
36,0 |
42,0 |
8 |
50.000 |
300.000 |
5,40 |
FMSRTA
70 ASA |
107,5 |
80 |
180 |
172,0 |
197 |
50,0 |
42,5 |
38,0 |
43,5 |
8 |
61.200 |
367.200 |
6,95 |
FMSRTA
80 ASA |
127,0 |
100 |
210 |
198,0 |
222 |
59,0 |
45,0 |
46,0 |
51,0 |
8 |
78.000 |
468.000 |
11,00 |
FMSRTA
100 ASA |
145,0 |
120 |
230 |
220,0 |
250 |
64,0 |
52,5 |
50,0 |
53,5 |
6 |
95.000 |
570.000 |
14,00 |
FMSRTA
120 ASA |
|
